Modbus RTU CO2 Monitoring with MQTT, InfluxDB and Discord Alerts

This recipe demonstrates how to integrate a Senseair S8 NDIR CO2 sensor into a modern observability stack using CycBox. We poll the sensor every 2 seconds via Modbus RTU, publish the readings to a local MQTT broker and InfluxDB v3, and route critical alerts through ntfy and Discord webhooks.

What this recipe does

• Polls Senseair S8 registers: Automatically reads CO2 concentration, system status, and device identification (Serial/Firmware).
• MQTT JSON Publishing: Dispatches real-time CO2 data to cycbox/sensor/co2.
• InfluxDB v3 Integration: Writes high-precision time-series data to InfluxDB for long-term trend analysis.
• Multi-channel Alerting: Sends high-priority notifications to ntfy and Discord when CO2 levels exceed 1000 ppm.
• Hysteresis Logic: Prevents alert fatigue by requiring levels to drop below 700 ppm before clearing an alarm state.

End-to-end data flow

The following diagram illustrates how a single CO2 sample travels from the physical sensor to your monitoring and alerting platforms.

Device and wire protocol

The Senseair S8 is a miniature NDIR CO2 sensor. It operates as a Modbus RTU slave over a 3.3V CMOS UART interface.

• Interface: 9600 bps, 8 data bits, no parity, 1 stop bit (the sensor transmits 2 stop bits).
• Power: 4.5V to 5.25V DC. Warning: Peak current reaches 300 mA during the 2-second lamp cycle (Source: PSP103.pdf).
• Modbus Address: Default 1–247. This recipe uses 254 (0xFE), which the S8 treats as a broadcast address to respond to any request in point-to-point configurations (Source: TDE2067.pdf).

The table below maps the primary Modbus Input Registers used in this recipe.

Wire Address	Name	Access	Unit / Description
0x0000	MeterStatus	RO	System health (0x0000 = OK)
0x0003	Space CO2	RO	CO2 concentration in ppm
0x001C	FW Version	RO	MSB: Main, LSB: Sub version
0x001D	Sensor ID Hi	RO	Serial number upper 16 bits
0x001E	Sensor ID Lo	RO	Serial number lower 16 bits

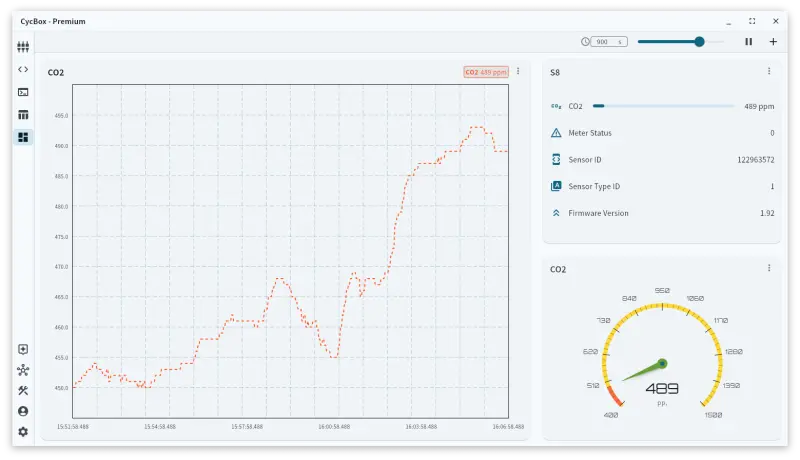

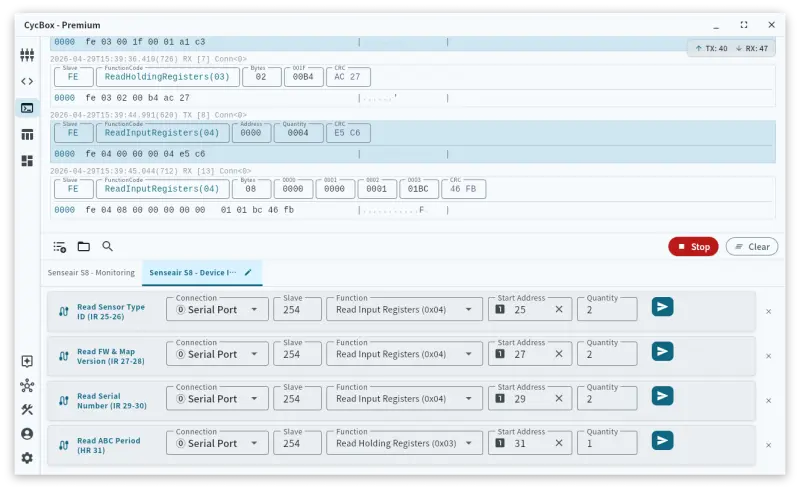

CycBox configuration

The setup requires three connections: the physical serial link to the sensor, a client connection to an MQTT broker, and a local MQTT server for internal routing.

Connection index map

The Lua script references these IDs to route messages to the correct transport.

connection_id	Role	Transport	Codec
0	Sensor Link	serial_port_transport	modbus_rtu_codec
1	Upstream MQTT	mqtt_transport	timeout_codec
2	Local Broker	mqtt_server_transport	timeout_codec

Connection details

[
  {
    "app": {
      "app_transport": "serial_port_transport",
      "app_codec": "modbus_rtu_codec",
      "app_transformer": "disable_transformer"
    },
    "serial_port_transport": {
      "serial_port_transport_port": "/dev/ttyACM0",
      "serial_port_transport_baud_rate": 9600
    },
    "modbus_rtu_codec": {
      "with_receive_timeout": 20
    }
  },
  {
    "app": {
      "app_transport": "mqtt_transport",
      "app_codec": "timeout_codec"
    },
    "mqtt_transport": {
      "mqtt_transport_broker_url": "mqtt://localhost:1883",
      "mqtt_transport_client_id": "cycbox-s8-monitor"
    }
  }
]

Lua pipeline walkthrough

The script manages the sensor lifecycle: it queries identification on startup and polls for data every 2 seconds.

-- Senseair S8 CO2 Sensor Monitor
-- Connects a Senseair S8 CO2 sensor via Modbus RTU over serial port, an MQTT client, and an MQTT broker.
-- Polls Senseair S8 CO2 sensor via Modbus RTU over serial, publishes readings to MQTT and InfluxDB v3,
-- and sends ntfy/Discord alerts on CO2 threshold breach.
--
-- Device: Senseair S8 CO2 Sensor (Modbus RTU Slave)
--   Slave Address: 1–247; 0xFE = broadcast "any sensor" (point-to-point test)
--   Communication: 9600 baud, 8 data bits, no parity, 1 stop bit (2 on TX)
--   Response timeout: 180 ms max; poll interval: 2 s (lamp cycle period)
--   Max 8 registers per read, max packet 39 bytes (including CRC)
--
-- Input Register Map (Function 0x04, 0-based wire addresses):
--   0x0000  MeterStatus       RO  System fault flags (0x0000 = healthy)
--                                   Bit 0: ERR_FATAL
--                                   Bit 1: ERR_OFFSET_REG
--                                   Bit 2: ERR_ALGORITHM
--                                   Bit 3: ERR_OUTPUT
--                                   Bit 4: ERR_SELF_DIAG
--                                   Bit 5: ERR_OUT_OF_RANGE
--                                   Bit 6: ERR_MEMORY
--   0x0001  AlarmStatus       RO  Alarm flags (reserved)
--   0x0002  Output Status     RO  Bit 0: ALARM_OUT (inverted, open-collector)
--                                   Bit 1: PWM_OUT (1 = full output)
--   0x0003  Space CO2         RO  Measured CO2 concentration (ppm)
--   0x0019  Sensor Type ID Hi RO  Device Type ID upper 16 bits
--   0x001A  Sensor Type ID Lo RO  Device Type ID lowest 8 bits (in high byte)
--   0x001B  Memory Map Ver    RO  Memory map structure version
--   0x001C  FW Version        RO  Firmware Main (bits 15:8) . Sub (bits 7:0)
--   0x001D  Sensor ID High    RO  Serial number upper 16 bits
--   0x001E  Sensor ID Low     RO  Serial number lower 16 bits
--
-- Holding Register Map (Function 0x03 read / 0x06 write):
--   0x0000  Acknowledgement   R/W Calibration completion flags
--                                   Bit 5: ACK_BG_CAL, Bit 6: ACK_ZERO_CAL
--   0x0001  Special Command   WO  0x7C06 = background cal, 0x7C07 = zero cal
--   0x001F  ABC Period        R/W Auto Baseline Correction interval (hours; 0 = suspend)

local SLAVE_ADDR = 254
local POLL_MS = 2000
local last_poll_ms = 0

-- External Services Config
local MQTT_CONN_ID = 1
local MQTT_TOPIC = "cycbox/sensor/co2"

local INFLUX_URL = get_env("INFLUX_URL") or "http://localhost:8181"
local INFLUX_TOKEN = get_env("INFLUX_TOKEN") or "<REDACTED>"
local INFLUX_DB = "cycbox"

local NTFY_TOPIC = "cycbox_alerts"
local DISCORD_WEBHOOK = get_env("DISCORD_WEBHOOK") or "<REDACTED>"

local CO2_THRESHOLD_HIGH = 1000
local CO2_THRESHOLD_LOW = 700
local is_co2_high = false

function on_start()
    log("info", "Starting Senseair S8 Modbus script with MQTT, InfluxDB and Alerts.")
    -- Query device info on startup: 6 registers starting at 0x0019
    modbus_rtu_read_input_registers(SLAVE_ADDR, 0x0019, 6, 100, 0)
end

function on_timer(now_ms)
    -- Poll for sensor values every POLL_MS (2 seconds)
    if now_ms - last_poll_ms >= POLL_MS then
        -- Query sensor active data: 4 registers starting at 0x0000
        modbus_rtu_read_input_registers(SLAVE_ADDR, 0x0000, 4, 0, 0)
        last_poll_ms = now_ms
    end
end

function on_receive()
    if message.connection_id ~= 0 then return false end
    local modified = false

    -- 1. Parse active sensor values
    local co2 = message:get_value(string.format("modbus_rtu_%d:input_0003", SLAVE_ADDR))
    if co2 then
        message:add_int_value("CO2_ppm", co2)
        modified = true

        -- MQTT Publish
        local mqtt_payload = string.format('{"co2_ppm": %d}', co2)
        mqtt_publish(MQTT_TOPIC, mqtt_payload, 0, false, 0, MQTT_CONN_ID)

        -- InfluxDB v3 Publish
        local line_data = string.format("senseair_s8 co2_ppm=%d", co2)
        influxdb_write_v3_async(INFLUX_URL, INFLUX_TOKEN, INFLUX_DB, line_data, "auto", true, false)

        -- Alerts Logic
        if co2 > CO2_THRESHOLD_HIGH and not is_co2_high then
            is_co2_high = true
            local alert_msg = string.format("High CO2 Alert! Level at %d ppm", co2)
            log("warn", alert_msg)
            ntfy_send_async({topic = NTFY_TOPIC, message = alert_msg, title = "CO2 Alert", priority = "high"})
            discord_send_async(DISCORD_WEBHOOK, alert_msg)
        elseif co2 <= CO2_THRESHOLD_LOW and is_co2_high then
            is_co2_high = false
            local recovery_msg = string.format("CO2 returned to normal. Level at %d ppm", co2)
            log("info", recovery_msg)
            ntfy_send_async({topic = NTFY_TOPIC, message = recovery_msg, title = "CO2 Normal", priority = "default"})
            discord_send_async(DISCORD_WEBHOOK, recovery_msg)
        end
    end

    local status = message:get_value(string.format("modbus_rtu_%d:input_0000", SLAVE_ADDR))
    if status then
        message:add_int_value("MeterStatus", status)
        if status ~= 0 then
            local fatal = bit.band(status, 0x01)
            local out_of_range = bit.band(status, 0x20)
            if fatal > 0 then log("error", "Sensor FATAL ERROR") end
            if out_of_range > 0 then log("warn", "Sensor OUT OF RANGE") end
        end
        modified = true
    end

    local out_status = message:get_value(string.format("modbus_rtu_%d:input_0002", SLAVE_ADDR))
    if out_status then
        local alarm = (bit.band(out_status, 0x01) > 0)
        message:add_bool_value("Alarm_Active", alarm)
        modified = true
    end

    -- 2. Parse startup device info
    local fw = message:get_value(string.format("modbus_rtu_%d:input_001C", SLAVE_ADDR))
    if fw then
        local main_ver = bit.rshift(fw, 8)
        local sub_ver = bit.band(fw, 0xFF)
        message:add_string_value("Firmware_Version", string.format("%d.%d", main_ver, sub_ver))
        modified = true
    end

    local id_hi = message:get_value(string.format("modbus_rtu_%d:input_001D", SLAVE_ADDR))
    local id_lo = message:get_value(string.format("modbus_rtu_%d:input_001E", SLAVE_ADDR))
    if id_hi and id_lo then
        local sensor_id = id_hi * 65536 + id_lo
        message:add_int_value("Sensor_ID", sensor_id)
        modified = true
    end

    local type_hi = message:get_value(string.format("modbus_rtu_%d:input_0019", SLAVE_ADDR))
    local type_lo = message:get_value(string.format("modbus_rtu_%d:input_001A", SLAVE_ADDR))
    if type_hi and type_lo then
        -- Type ID spans upper 16 bits in 0x0019, and lowest 8 bits in the high byte of 0x001A
        local type_id = type_hi * 256 + bit.rshift(type_lo, 8)
        message:add_int_value("Sensor_Type_ID", type_id)
        modified = true
    end

    return modified
end

Downstream service contracts

MQTT

• Topic: cycbox/sensor/co2
• Payload Schema:

{
  "co2_ppm": 450
}

InfluxDB v3

• Measurement: senseair_s8
• Fields: co2_ppm (Integer)
• Line Protocol Example:

senseair_s8 co2_ppm=450

Alerting (ntfy & Discord)

• ntfy: Published to the cycbox_alerts topic with priority="high" during breaches.
• Discord: Pushed via webhook as a plain-text alert string.

Alerting logic

To prevent repetitive alerts when the CO2 level fluctuates near the threshold, we use hysteresis.

The table below defines the state transition rules for the CO2 alarm.

Current State	Condition	New State	Action
IDLE	CO2 > 1000 ppm	ALARM	Send Discord/ntfy Alert
ALARM	CO2 < 1001 ppm and > 700 ppm	ALARM	None (Hysteresis window)
ALARM	CO2 <= 700 ppm	IDLE	Send Recovery Notification

Operational concerns

• Environment Variables: You must set INFLUX_URL, INFLUX_TOKEN, and DISCORD_WEBHOOK before running this script.
• Rate Limits: Discord webhooks are rate-limited. The script handles this by only sending alerts on state transitions, not on every 2-second poll.
• Sensor Warm-up: The S8 requires approximately 2 minutes to reach T90 accuracy (Source: PSP103.pdf). Early readings may be slightly unstable.

Reproducing this recipe

1. Hardware: Senseair S8 sensor connected via a USB-to-RS485 adapter (or direct UART if the host is 3.3V compatible).
2. Wiring: Ensure common ground between the sensor and the adapter.
3. Configuration: Paste the JSON configuration into CycBox.
4. Environment: Set your secrets in the CycBox environment variables.
5. Deployment: Upload the Lua script to the engine.

Frequently asked questions

why does the script use slave address 254?

Address 254 (0xFE) is the Modbus broadcast address for the Senseair S8, allowing communication with any single connected sensor regardless of its configured ID. This simplifies setup for single-sensor deployments.

how do i change the co2 alert thresholds?

Modify the CO2_THRESHOLD_HIGH and CO2_THRESHOLD_LOW variables in the Lua script to set your desired alarm and recovery points.

can i power the sensor directly from a usb-rs485 adapter?

Only if the adapter can provide the 300mA peak current required during the NDIR lamp cycle; otherwise, an external 5V supply is required. Insufficient current often causes Modbus checksum errors or device resets.

why is the measurement interval set to 2 seconds?

The Senseair S8 performs a new internal measurement every 2 seconds matching its infrared lamp cycle; polling faster provides no new data.

Gotchas and recommendations

• Logic Levels: The S8 uses 3.3V CMOS logic. Connecting it directly to a 5V UART without a level shifter can damage the sensor's Rx/Tx pins.
• ABC (Auto Baseline Correction): By default, the S8 assumes the lowest CO2 level seen over 8 days is 400 ppm (fresh air). If used in a 24/7 occupied space without fresh air, the sensor will eventually drift and report inaccurate (lower) values.
• Data Persistence: Ensure your InfluxDB bucket cycbox exists before starting, as the async write will fail silently if the destination is missing.
