MCP Integration

CycBox provides an MCP server that exposes IoT debugging capabilities to AI agents like Claude. This allows AI assistants to help you configure connections, write Lua scripts, control the engine, and debug protocol issues.

Overview

The MCP server runs as an HTTP service that implements the Model Context Protocol, enabling AI agents to:

• Read and modify connection configurations (transport, codec, transformer)
• Write and validate LuaJIT scripts for message processing
• Control the IoT engine (start, stop, restart)
• Hot-reload Lua scripts without interrupting connections
• Retrieve logs for debugging

Requirements

• Premium License: MCP server functionality requires a valid CycBox Pro premium license
• Network Access: The server listens on a configurable host/port (default: 127.0.0.1:8654)

Configuring the MCP Server

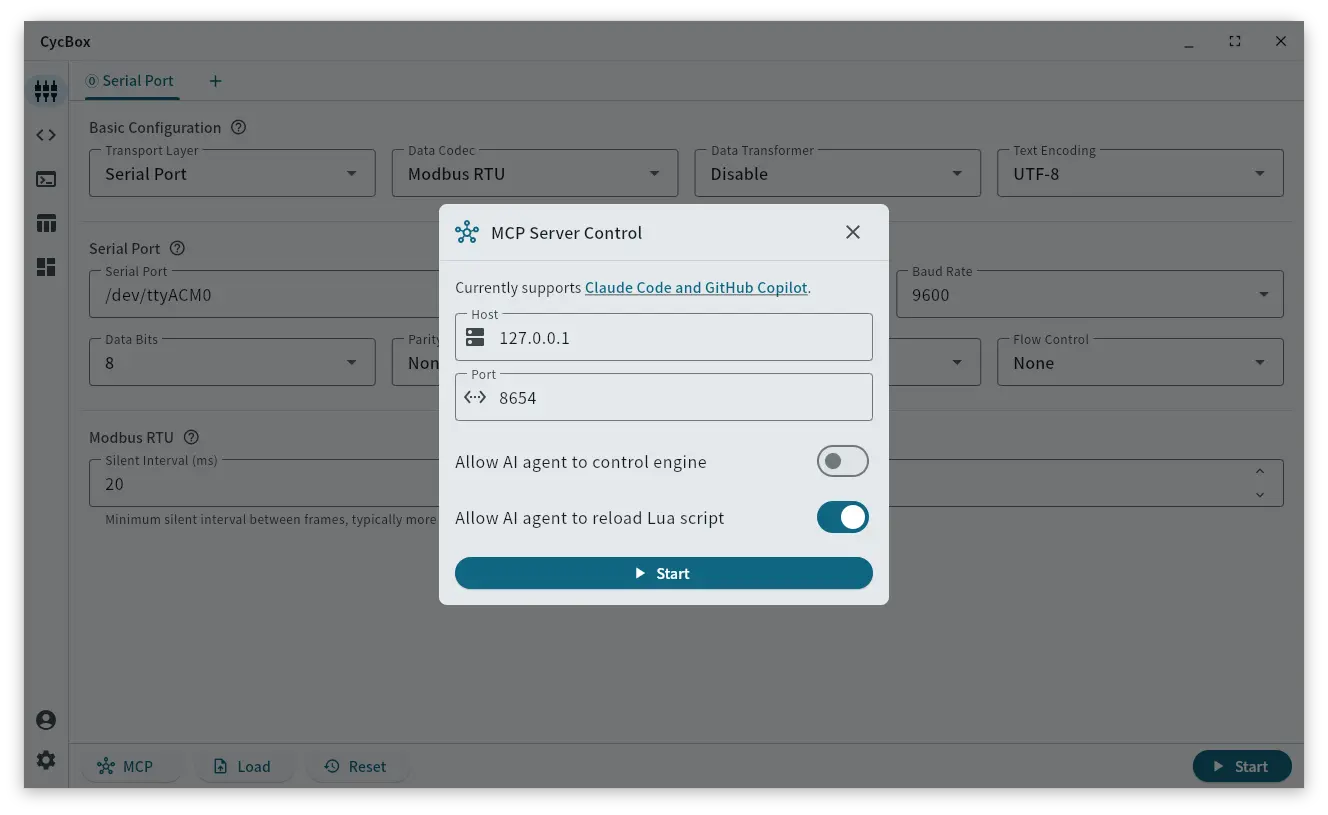

1. Open MCP Server Settings

In CycBox UI, navigate to the MCP server configuration dialog (accessible from the main menu or settings).

2. Configure Server Settings

• Host: The network interface to bind to (default: 127.0.0.1)

  • Use 127.0.0.1 for local-only access (recommended for security)
  • Use 0.0.0.0 to allow network access (use with caution)

• Port: The TCP port number (default: 8654)

  • Ensure this port is not in use by other applications
  • If you change this, remember to use the new port when adding to Claude Code

3. Set AI Agent Permissions

Control what actions the AI agent can perform:

• Allow agent to control engine: Permits the AI to start, stop, and restart the IoT engine

  • Enable this if you want the AI to help with engine lifecycle management
  • Disable for read-only assistance (configuration review, script writing)

• Allow agent to reload Lua: Permits the AI to hot-reload Lua scripts

  • Enable this if you want the AI to test script changes immediately
  • Scripts are validated before reload to prevent errors

4. Start the Server

Click the Start button to launch the MCP server. When running, you'll see:

• Server status indicator showing "Running"
• The server URL (e.g., http://127.0.0.1:8654)
• A Stop button to shut down the server

Auto-Start Behavior: If the MCP server was running when you last closed CycBox, it will automatically start when you reopen the application using the same configuration.

Note: The server must remain running while the AI agent is connected. Stopping the server will disconnect the agent.

Adding to Claude Code

Once the MCP server is running, add it to Claude Code using the following command:

claude mcp add CycBox --transport http http://localhost:8654

Important: Replace localhost:8654 with your configured host and port if you changed the defaults.

Verifying the Connection

After adding the server, Claude Code can now:

• Get details about CycBox with claude mcp get CycBox
• Automatically use CycBox tools when you ask for IoT debugging assistance

Example prompts you can try:

• "Show me the current connection configuration"
• "Help me write a Lua script to parse Modbus RTU messages"
• "Start the engine and check for any errors"
• "Update the serial port configuration to use 115200 baud"

Adding to VSCode (GitHub Copilot)

If you're using GitHub Copilot in VSCode, you can add the MCP server through the VSCode interface:

1. Open the Command Palette

   • Windows/Linux: Press Ctrl+Shift+P
   • Mac: Press Cmd+Shift+P

2. Run the MCP command

   • Type MCP: Add Server and select it from the list

3. Choose connection type

   • Select HTTP as the transport type

4. Enter server URL

   • Input your MCP server URL (e.g., http://localhost:8654)
   • Use the host and port configured in CycBox UI

5. Enter server name

   • Provide a name for the server (e.g., CycBox)

Once added, GitHub Copilot in VSCode will have access to all CycBox tools and resources when assisting with your IoT debugging tasks.

Available Tools

The MCP server exposes the following tools to AI agents:

Tool	Description	Requires Permission
get_config_schema	Discover available configuration fields for component groups. Call with group_names=["app"] first, then with specific component names to get their field schemas	None
get_configs	Retrieve current transport/codec/transformer configuration as structured JSON	None
set_configs	Update connection configuration (structured JSON, validated by schema). Use get_config_schema first to discover available fields	None
get_lua_script	Retrieve the current Lua script source code (LuaJIT / Lua 5.1)	None
set_lua_script	Update and validate Lua script (syntax checked before saving). Must use LuaJIT (Lua 5.1) syntax	None
reload_lua_script	Hot-reload Lua script without stopping engine (creates new Lua VM). Returns reload status and logs	Allow agent to reload Lua
start_engine	Start the IoT engine with current configuration, wait 3s for initial logs. Returns startup status, connection IDs, and logs	Allow agent to control engine
stop_engine	Stop the running IoT engine	Allow agent to control engine
restart_engine	Stop and restart the engine with current configuration, wait 3s for initial logs. Returns startup status, connection IDs, and logs	Allow agent to control engine
get_logs	Retrieve recent Lua script logs and hook errors (max 100 entries)	None

Available Resources

The MCP server also exposes resources that AI agents can read for reference:

Resource URI	Description
cycbox://api/lua-api	Complete Lua scripting API reference (hooks, helpers, modules)
cycbox://example/{name}	Example scripts with embedded JSON config blocks

Agents can list all available resources and read them to understand the Lua API and see working examples before writing scripts or configurations.
