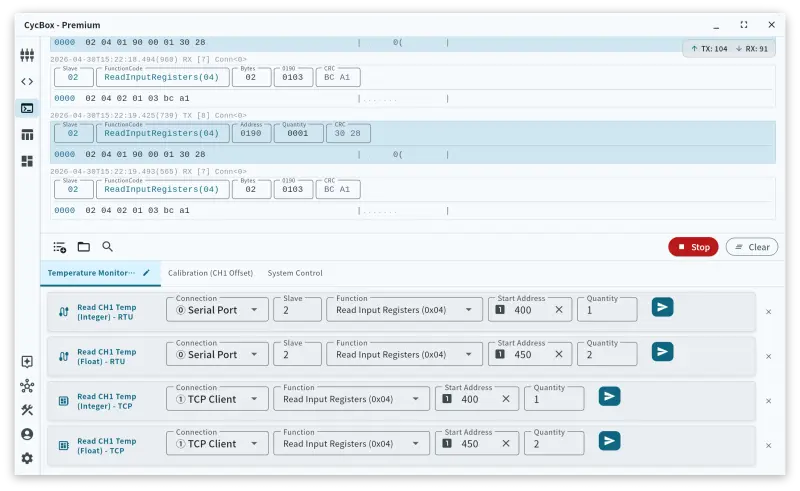

PT100 Temperature Monitoring with Modbus and InfluxDB v3

This recipe demonstrates how to monitor high-precision PT100 sensors using the ME31-XDXX0400 4-channel acquisition module. The pipeline supports both Modbus RTU and Modbus TCP transports, implements Exponential Moving Average (EMA) filtering for noise reduction, and exports telemetry to InfluxDB v3.

What this recipe does

• Dual-Transport Support: Provides a toggle-switch configuration for RS485 (Modbus RTU) or Ethernet (Modbus TCP) communication.
• 1Hz Polling: Requests integer temperature data from Channel 1 every 1000ms.
• EMA Filtering: Applies an Exponential Moving Average (ALPHA = 0.2) to smooth out fluctuations in the PT100 readings.
• InfluxDB v3 Integration: Batch-exports filtered temperature data every 10 seconds using the InfluxDB Line Protocol.
• Startup Inventory: Automatically queries the device firmware version upon script initialization.
• Fault Detection: Logs a warning if the sensor reports a disconnected state (-99.9 °C).

End-to-end data flow

Device and wire protocol

The ME31-XDXX0400 is a 4-channel PT100 acquisition module that functions as a Modbus Slave (RTU) or Modbus Server (TCP).

• Physical Layer: RS485 (9600 8N1) and RJ45 Ethernet (10/100M).
• Scaling: Temperature values are stored as 16-bit signed integers where Physical Value = Register * 0.1.
• Error Handling: A specific value 0xFC19 (-999) indicates a disconnected sensor.

The table below maps the primary Modbus registers used in this recipe for temperature and system identification.

Address	Register Name	Access	Scaling	Unit	Description
0x0190	CH1_TEMP_INT	Input (04)	0.1	°C	Channel 1 Integer Temperature
0x07DC	FW_VERSION	Holding (03)	1	-	Firmware Version Number
0x2328	CH1_OFFSET	Holding (03)	0.1	°C	Calibration Offset for Channel 1

CycBox configuration

The engine is configured with two concurrent connections. The Lua script selects the active path based on a variable flag.

Active Connections Index

connection_id	Transport	Codec	Target/Port
0	Serial Port	Modbus RTU	/dev/ttyUSB0 (9600 8N1)
1	TCP Client	Modbus TCP	192.168.7.7:502

Configuration JSON

[
  {
    "app": {
      "app_transport": "serial_port_transport",
      "app_codec": "modbus_rtu_codec",
      "app_transformer": "disable_transformer",
      "app_encoding": "UTF-8"
    },
    "modbus_rtu_codec": {
      "with_receive_timeout": 20
    },
    "serial_port_transport": {
      "serial_port_transport_data_bits": 8,
      "serial_port_transport_port": "/dev/ttyUSB0",
      "serial_port_transport_parity": "none",
      "serial_port_transport_baud_rate": 9600,
      "serial_port_transport_stop_bits": "1",
      "serial_port_transport_flow_control": "none"
    }
  },
  {
    "app": {
      "app_transport": "tcp_client_transport",
      "app_codec": "modbus_tcp_codec",
      "app_transformer": "disable_transformer",
      "app_encoding": "UTF-8"
    },
    "tcp_client_transport": {
      "tcp_client_transport_timeout": 5000,
      "tcp_client_transport_keepalive": true,
      "tcp_client_transport_nodelay": true,
      "tcp_client_transport_port": 502,
      "tcp_client_transport_host": "192.168.7.7"
    },
    "modbus_tcp_codec": {
      "unit_id": 2
    }
  }
]

Lua pipeline walkthrough

The following script manages the polling lifecycle and data processing. It uses the on_timer callback to maintain a steady sampling rate regardless of downstream latency.

-- ME31-XDXX0400 PT100 Temperature Monitor
-- Configured for Modbus RTU (serial) and Modbus TCP. A flag toggles between the two.
-- Polls CH1 temperature every 1 second, applies an exponential moving average (EMA) filter,
-- and saves the filtered data to InfluxDB every 10 seconds. Device info is read once at startup.
--
-- Device: ME31-XDXX0400 4-Channel PT100 Module
-- Protocol: Modbus RTU (Baud: 9600 8N1) or Modbus TCP
-- Modbus Address: Slave 1 (RTU), Unit 2 (TCP, per config)
--
-- Register Map:
--   0x0190  CH1_TEMP_INT  Input Reg  Temperature integer (*0.1 °C). 0xFC19 (-999) = Disconnected
--   0x07DC  FW_VERSION    Holding    Firmware Version

local CONNECTION_MODE = "RTU" -- Change to "TCP" to use Modbus TCP
local CONN_ID = (CONNECTION_MODE == "TCP") and 1 or 0
local SLAVE_ADDR = 1
local TCP_UNIT_ID = 2

local POLL_MS = 1000
local INFLUX_INTERVAL_MS = 10000
local ALPHA = 0.2 -- Smoothing factor for EMA filter

local last_poll_ms = 0
local last_influx_ms = 0
local filtered_temp = nil

local INFLUX_URL = get_env("INFLUX_URL") or "http://localhost:8181"
local INFLUX_TOKEN = get_env("INFLUX_TOKEN") or "<REDACTED>"
local INFLUX_DB = "cycbox"

function on_start()
    log("info", "Starting ME31-XDXX0400 monitoring. Mode: " .. CONNECTION_MODE)

    -- Read Firmware Version at startup
    if CONNECTION_MODE == "TCP" then
        modbus_tcp_read_holding_registers(0x07DC, 1, 100, CONN_ID)
    else
        modbus_rtu_read_holding_registers(SLAVE_ADDR, 0x07DC, 1, 100, CONN_ID)
    end
end

function on_timer(now_ms)
    -- Poll CH1 Temperature
    if now_ms - last_poll_ms >= POLL_MS then
        if CONNECTION_MODE == "TCP" then
            modbus_tcp_read_input_registers(0x0190, 1, 0, CONN_ID)
        else
            modbus_rtu_read_input_registers(SLAVE_ADDR, 0x0190, 1, 0, CONN_ID)
        end
        last_poll_ms = now_ms
    end

    -- Save to InfluxDB periodically
    if now_ms - last_influx_ms >= INFLUX_INTERVAL_MS then
        if filtered_temp ~= nil then
            local line_data = string.format("me31_temp,channel=1 temperature=%.2f", filtered_temp)
            influxdb_write_v3_async(INFLUX_URL, INFLUX_TOKEN, INFLUX_DB, line_data, "auto", true, false)
        end
        last_influx_ms = now_ms
    end
end

function on_receive()
    -- Only process messages from the active connection
    if message.connection_id ~= CONN_ID then return false end
    local modified = false

    -- Check Firmware Version
    local fw_key = (CONNECTION_MODE == "TCP") and string.format("modbus_tcp_%d:holding_07DC", TCP_UNIT_ID)
                                              or string.format("modbus_rtu_%d:holding_07DC", SLAVE_ADDR)
    local fw_ver = message:get_value(fw_key)
    if fw_ver then
        message:add_int_value("Firmware_Version", fw_ver)
        modified = true
    end

    -- Check CH1 Temperature
    local temp_key = (CONNECTION_MODE == "TCP") and string.format("modbus_tcp_%d:input_0190", TCP_UNIT_ID)
                                                or string.format("modbus_rtu_%d:input_0190", SLAVE_ADDR)
    local raw_temp = message:get_value(temp_key)
    if raw_temp then
        -- Convert uint16 to int16 (Two's complement)
        if raw_temp > 32767 then
            raw_temp = raw_temp - 65536
        end

        if raw_temp == -999 then
            log("warn", "CH1 Sensor Disconnected")
        else
            local temp_c = raw_temp * 0.1

            -- Apply EMA smoothing filter
            if filtered_temp == nil then
                filtered_temp = temp_c
            else
                filtered_temp = ALPHA * temp_c + (1 - ALPHA) * filtered_temp
            end

            message:add_float_value("CH1_Temperature_Filtered", filtered_temp)
            message:add_float_value("CH1_Temperature_Raw", temp_c)
            modified = true
        end
    end

    return modified
end

Callback Logic

1. on_start: Dispatches a one-time request for register 0x07DC (Firmware Version).
2. on_timer: Orchestrates two distinct loops. The first triggers a Modbus read every 1s. The second pushes the accumulated filtered value to InfluxDB every 10s.
3. on_receive: This is the parser. It handles two's complement conversion for negative temperatures, scales the integer by 0.1, and calculates the EMA using the formula EMA_now = (ALPHA * Value) + ((1 - ALPHA) * EMA_prior).

Downstream service contracts

InfluxDB v3

Data is written via the InfluxDB v3 write_async API using Line Protocol.

• Measurement: me31_temp
• Tags: channel=1
• Fields: temperature (float)
• Precision: Auto

Example Line Protocol Payload:

me31_temp,channel=1 temperature=24.52

Operational concerns

• Environment Variables: The script requires INFLUX_URL and INFLUX_TOKEN to be set in the CycBox environment.
• Filtering Response: The ALPHA value of 0.2 provides moderate smoothing. Increasing this value towards 1.0 reduces filtering (more responsive, more noise); decreasing it towards 0.0 increases filtering (smoother, slower response to changes).
• Address Conflicts: Note that in the provided session, the Lua script was targeting Slave ID 1, while the manual input templates were configured for Slave ID 2. Ensure the SLAVE_ADDR (RTU) and TCP_UNIT_ID (TCP) variables in the script match your physical device DIP switch settings.

Frequently asked questions

Why is my reading -99.9?

The ME31-XDXX0400 returns a value of -999 (0xFC19) in the integer register when a PT100 sensor is disconnected or the wiring is faulty. Check your 2-wire or 3-wire connections at the module terminals.

How do I toggle between Modbus RTU and TCP modes?

The Lua script includes a CONNECTION_MODE flag at the top. Set this to "RTU" for serial or "TCP" for Ethernet. The script automatically adjusts the CONN_ID and register keys.

What is the scaling factor for temperature registers?

Temperature registers in this device use a 0.1x scaling factor. The script automatically handles this by multiplying the raw register value by 0.1 to get the actual degrees Celsius.

Gotchas and recommendations

• 2-Wire PT100 Wiring: If using 2-wire sensors, you must short the CHx- and COM x terminals as per the manufacturer's reference manual, otherwise the module will report a disconnected sensor state.
• TCP Timeout: The Modbus TCP codec is configured with a 5000ms timeout. If the network is congested, the on_receive callback may not fire consistently, which will delay the InfluxDB updates.
• Secrets Management: Never hardcode the INFLUX_TOKEN in the script if you intend to share the configuration. Always use the get_env function to pull secrets from the engine's secure environment storage.
